MAXDOP – SQL Server’s Way To Avoid Parallelism


SQL Server comes with built-in support for using parallelism for query execution. That means that SQL Server will split up the execution of a query among different CPUs if it thinks that it can get the query results faster that way. The default setting in SQL Server will use the number of CPU cores on the system as the maximum number of parallel processors to use. Okay… this is great, right?

The Grass Isn’t Always Greener
Although the thought of running 1 SQL query but using multiple processors sounds great, sometimes it can actually sometimes cause slower queries. A couple issues I have ran in to in our production environment are:

  • Sometimes the parallelism can take away CPU from other processes that are trying to run at the same time.
  • Sometimes the time that it takes to reassemble the results is longer than the not using parallelism. What this means is that when a query is split among different processors, it will need to merge them back together before it sends it to you. Sometimes this can be a longer task then just using 1 processor the whole time.

MAXDOP is a query hint that can be added to the end of your SQL query to control the amount of parallelism that happens. When you use MAXDOP, you will specify the maximum number of parallelism threads that SQL Server uses for that query. In fact, the word MAXDOP stand for “Maximum Degree Of Parallelism”.

Here is an example of how to use the MAXDOP query hint to limit the number of parallel threads to 1 (essentially disabling the parallelism):

To show how this affects the query, let me show you the execution plan when I supply the MAXDOP 1.
MAXDOP No Parallelism

Here is a screenshot of the execution plan of that exact same query without specifying the MAXDOP. You can see that it now uses parallelism.

MAXDOP Parallelism

Will Removing MAXDOP Help My Queries Run Faster
Is MAXDOP a silver bullet for making queries faster? No. In most cases you will just want SQL Server to manage the parallelism. This is usually the fastest/best way for your query to execute. But occasionally if you are having a slow query, you can try changing the MAXDOP setting. You will need to test your query before and after to see if there is significant improvement.

How Do You Know If Your Query Is Using Parallelism?
Here are a couple ways that I use to find out if parallelism is happening to a query.

  1. Check out the actual execution plan. After you run the query and the execution plan shows up, you will see a “Parallelism” step. You can see the screenshot above for what that looks like.

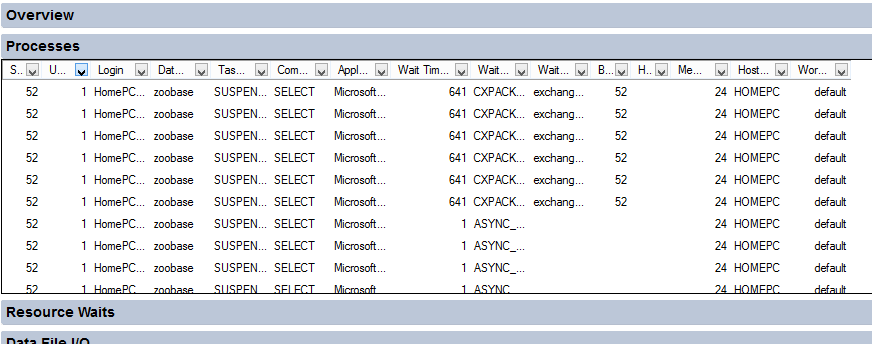

  2. Monitor the Activity Monitor in SQL Server Management Studio. This is a great way to detect if your production applications are causing parallelism. It’s really easy to see in Activity Monitor because it looks like the same line repeated many times.
    MAXDOP Activity Monitor




When querying out data, SQL Server has a ton of different query hints. One less commonly known query hint is FORCE ORDER. So here we will talk about what this query hint does and how we can use it efficiently.

When you put this query hint on to your query, it tells SQL Server that when it executes the statement to not change the order of the joins in the query. It will join the tables in the exact order that is specified in the query. Normally the SQL Server optimizer will rearrange your joins to be in the order that it thinks will be optimal for your query to execute.

To use the FORCE ORDER query hint, you will want to add this at the end of your query.

Example Without FORCE ORDER

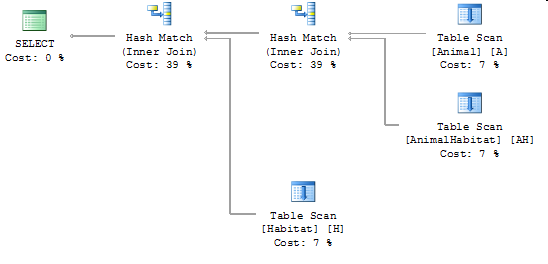

This is the actual execution plan without the FORCE ORDER hint. You can see that SQL Server starts at the table Animal and AnimalHabitat tables, then goes to the Habitat table. If you look at our query above, we clearly list the tables in the order of Habitat, AnimalHabitat, then Animal.

Execution Plan Without Force Order

Example With FORCE ORDER

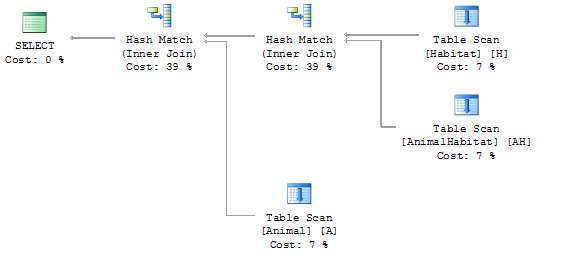

In the screenshot below, it shows the actual execution plan with the FORCE ORDER hint. In the new query, you can see that SQL Server starts with the Habitat and AnimalHabitat tables and then moves to the Animal table. It does this because when we turn on the FORCE ORDER option, it uses the order of the tables specified in the query syntax.

Execution Plan With Force Order

What Is This Used For
The FORCE ORDER query hint is only used when you want to override the way that SQL Server wants to execute this query. Normally you will just let SQL Server figure out how to get the data from the database. It does such a good job at it, that you do not usually need to override this functionality.

Occasionally SQL Server will not figure out the most optimal way to pull this data out. In this case you may want to try this query hint.
