SQL Server Management Studio Dark Theme

Facebooktwittergoogle_plusredditpinterestlinkedinmail

If you like the dark theme of Visual Studio and wish that you had the dark theme for SQL Server Management Studio (SSMS), look no further.  Management Studio actually comes with a dark theme, but it just isn’t enabled.  It’s super simple to enable this feature.  Here’s how.

Note: I’ve confirmed this works with SQL Server 2016.

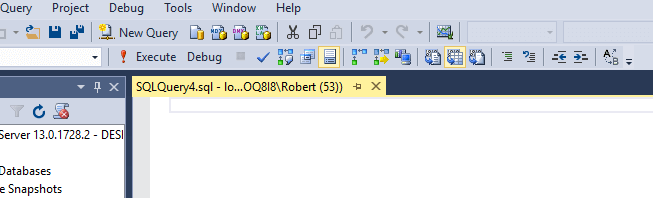

Here is what my current themed Management Studio looks like:
SQL Server Management Studio Dark Theme Light



The place in SQL Server Management Studio that we set the color theme is in the Options.  To see what we currently have, you go to the options by clicking Tools –> Options…
SQL Server Management Studio Dark Theme Options

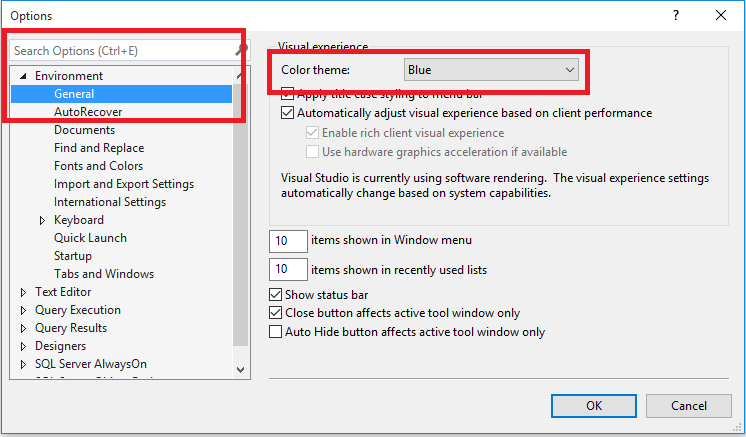

From there we navigate to Environment –> General.  On the right side we can see Color theme:.  This option shows the current color theme that you are SSMS is using.
SQL Server Management Studio Dark Theme Options

My only options in the drop-down are Blue and Light:
SQL Server Management Studio Dark Theme Options

To allow the Dark theme to be selected, all we need to do is make a small change to the ssms.pkgundef file.  This file is located at: “C:\program files (x86)\Microsoft SQL Server\130\tools\binn\managementstudio\ssms.pkgundef”.

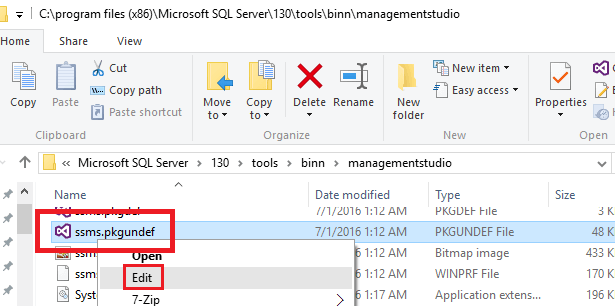

Step 1) Close SQL Server Management Studio and then browse to the ssms.pkgundef file and open it with Notepad.  The easiest way I found is to right click on the file and choose Edit.

TIP: If you can’t save the file after editing it, you may need to launch Notepad as administrator.

SQL Server Management Studio Dark Theme Edit

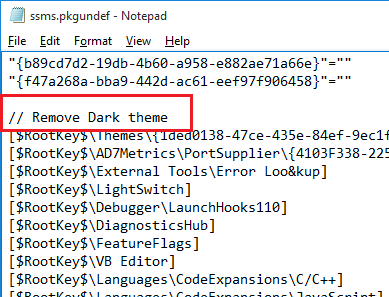

Step 2) Find the // Remove Dark theme key.  The easiest way is to just do a search in Notepad.
SQL Server Management Studio Dark Theme Edit

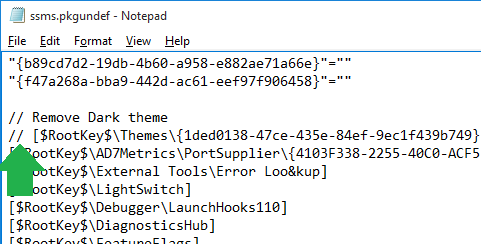

Step 3) Add 2 slashes (//) in front of this key that starts with [$RootKey$\Themes\.  Save and close the file.
SQL Server Management Studio Dark Theme Edit

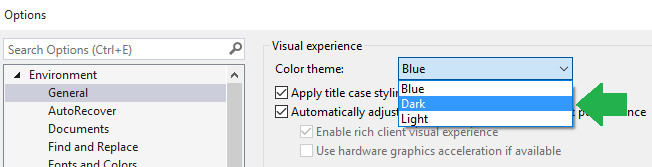

Step 4) Relaunch SQL Server Management Studio.  Go back in to the options and select the Dark theme.
SQL Server Management Studio Dark Theme Done

This is what your final product should look like!  Enjoy!
SQL Server Management Studio Dark Theme Dark



SQL Server Management Studio Keyboard Shortcuts

Facebooktwittergoogle_plusredditpinterestlinkedinmail

Although some of these keyboard shortcuts may seem a little odd at first… once you start using them I think that you’ll love them and use them all the time.

Ctrl + R – Show/Hide the results pane

Ctrl + N – New query window

Ctrl + Shift + U – Switch current selection to uppercase

Ctrl + Shift + L – Switch current selection to lowercase

F5 – Execute the currently selected query (or entire query if nothing is selected)

Ctrl + Tab – Switch to the next open tab

Ctrl + Shift + Tab – Switch to the previous open tab

Ctrl + Space – Pops up IntelliSense complete if it is not already open

Ctrl + Shift + R – Refresh local IntelliSense cache

F8 – Open the Object Explorer if not already open



 What other SSMS keyboard shortcuts do you use?

5 Quick Tips For Using SQL Server Management Studio

Facebooktwittergoogle_plusredditpinterestlinkedinmail

1) Script multiple objects by using the Object Explorer Details.

Scripting objects like tables and stored procedures is one great feature of SQL Server Management Studio.  But the way to script multiple tables at one time is not very straight forward.

To script multiple objects, first thing you need to do is open the Object Explorer Details window.  This is located under the VIEW menu at the top of the screen.

Object Explorer Details

When you click on an object’s folder (Tables, Stored Procedures, Views, etc) in the Object Explorer (located on the left of the screen), the Object Explorer Details window will show all of the available tables.  You can now highlight multiple objects… then right click and select the Script As option.

SQL Server Object Explorer-details-window-script



2) Add Line Numbers To The Query Window

Line numbers can be very useful when doing development.  By default, SQL Server Management Studio has this turned off.  To turn this on:

  1. Select Tools -> Options
  2. In the tree on the left, select Text Editor -> All Languages. Under the Display heading, check the box for Line numbers.

Enable Line Numbering



3) How To Refresh The IntelliSense Cache

If you’ve ever added a table or stored procedure, you know that the IntelliSense does not know about it.  You can refresh the cache pretty easily.  To refresh the IntelliSense cache, just selecting Edit -> IntelliSense -> Refresh Local Cache.

SQL Server IntelliSense Refresh Cache



4) Highlight Columns Of Text In Query Window

This trick actually works in Visual Studio also.  You can highlight and manipulate text in different rows without having to highlight the entire row.  This is a little hard to explain, so I will show you pictures of what I mean.

Query Highlight Columns

To do this fancy trick, all you need to do is hold down the ALT key while you click and drag.

So, how is this useful you ask… good question.  I use it for 2 different things.

  • First is for aligning the sql statement. If you highlight text you can just hit tab and it will tab the highlighted text in more.
  • The second thing I use it for is copying data. If you only want to pull out a specific set of data, this is super easy.



5) Drag And Drop Objects On To Query Window

If you ever want a fast way to place a table name, column name, or other object in to a query… you can just drag and drop.  Just drag the object (table, column, store procedure, etc…) from the object browser and place it where you want it on the query window.  It will insert the fully qualified name in to the query with no typing needed.

Drag-Drop Objects

Show Query Execution Time

Facebooktwittergoogle_plusredditpinterestlinkedinmail

One of the limitations of SQL Server Management Studio is that it shows query execution time in seconds.  In most daily activities, this is accurate enough.  But when it comes to query permanence tuning, it is helpful to have a more accurate measurement.

Here are a 3 different ways to show you an accurate query execution time:


Statistics On
To have your exact query time show in the separate messages tab, all you need to do is run the following queries.

Then you can view the time by clicking on the Messages tab.

Show Query Execution Time


Include Client Statistics
To get a lot of in-depth information about your query, you can turn on Client Statistics before running your query.  The details of all the results will be shown in the Client Statistics tab after execution was completed.

Turn on client statistics by choosing the Include Client Statistics option from query menu.

show query execution time client stats

You can then view the query time by looking under the Client Statistics tab by your query results

Show Query Execution Time Client Stats


Inline Query Time Results
If you would like to just show the execution time in the standard results window, this query allows you to do this.  It will also allow you to show exact time of execution of a specific code segment in a query.

To use this, just place the code that you would like to get the execution time for in the center of the below script.  The exact time will be shown in the results.

Reference:  http://technet.microsoft.com/en-us/library/ms190287.aspx

How To Enable Line Numbering

Facebooktwittergoogle_plusredditpinterestlinkedinmail

Line numbers can be very helpful when writing/debugging code in SQL Server Management Studio. Below are the simple steps to turn on line numbering in the query window.

Before and After

Step 1

From the menu at the top, select Tools –> Options

Select Tools --> Options

Step 2

From the list on the left, choose Text Editor and then All Languages.  Then select the Line numbers check box on the right.  Choose OK to save your settings.

Line Number Options
